Customer Challenge
A customer in the industrial automation industry ordered nine models of precision-machined components featuring a deep through-hole with a diameter tolerance of 30.00–30.02 mm and a maximum hole depth of 136 mm.(Due to the confidentiality of the customer’s drawing information, all deep-hole components are not displayed in this case study.)
The customer's original quality requirement was straightforward:
· All holes must be inspected using an inside micrometer.
· Measurement readings would serve as the sole acceptance criterion.
While this approach appeared reasonable from a dimensional perspective, our engineering team identified a potential risk based on previous deep-hole machining projects.
For long and slender precision holes, dimensional compliance alone does not always guarantee successful assembly. Small deviations in straightness or concentricity can significantly reduce the effective passage clearance of the hole, resulting in assembly problems even when all measured dimensions fall within specification.
To verify this concern, we proposed a comparative inspection study before mass production.
Project Overview
Item | Specification |
Industry | Industrial Automation |
Number of Part Models | 9 |
Hole Diameter | 30.00–30.02 mm |
Maximum Hole Depth | 136 mm |
Material | AL 2024 |
Inspection Environment | 20°C Constant Temperature Laboratory |
The primary objective was to determine which inspection method most accurately reflected real assembly performance.
Verification Test
Our Engineering Department, Quality Control Team, and Metrology Laboratory jointly conducted a controlled comparison test.
Three inspection methods were evaluated:
1. Inside Micrometer
Traditional dimensional inspection based on localized diameter measurements.
2. Coordinate Measuring Machine (CMM)
Multi-point scanning and dimensional analysis.
3. Custom Go/No-Go Pin Gauge
Physical verification using a gauge that simulates the customer's mating shaft.
All equipment was calibrated and tested in a controlled 20°C metrology laboratory to ensure reliable and repeatable results.
Test Results
Inspection Comparison
Inspection Method | Result |
Inside Micrometer | PASS |
CMM Measurement | Mostly PASS |
Go Pin Gauge Test | FAIL |
Inside Micrometer Results

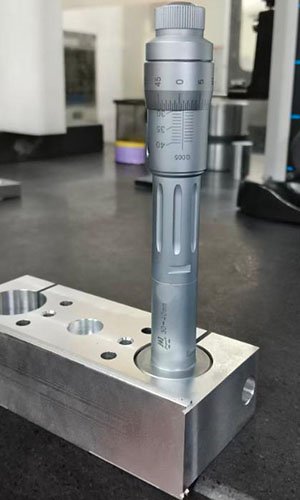

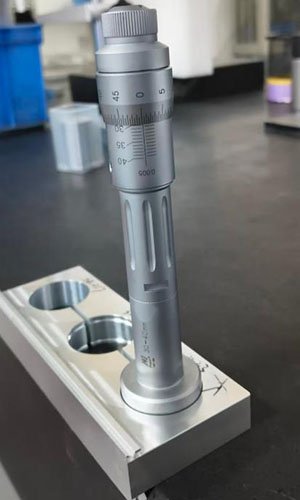

The measured hole diameters were:
· 30.011 mm
· 30.005 mm
![]()
Both readings were fully compliant with the drawing specification.
Based on the customer's original inspection standard, these parts would have been approved for shipment.
CMM Results

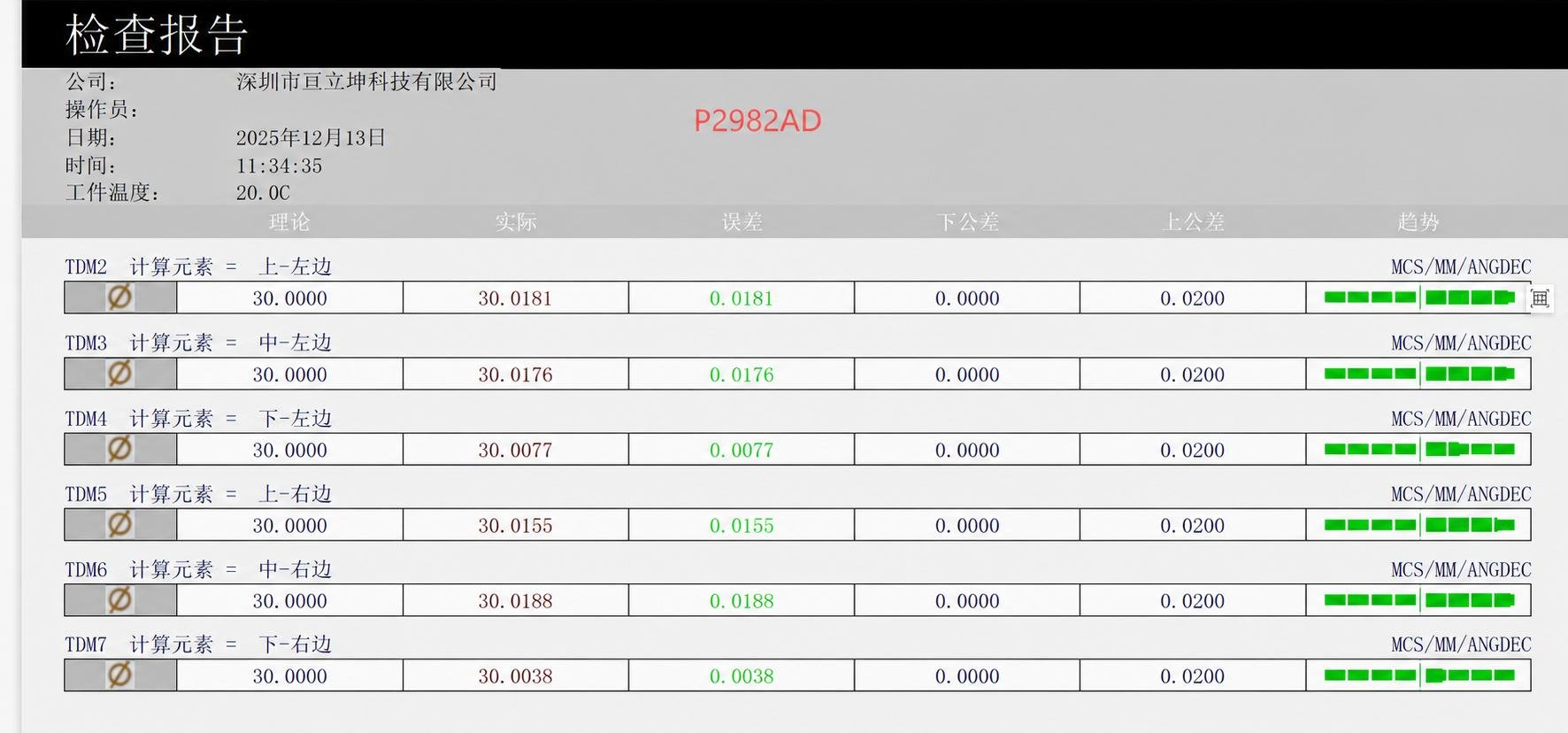

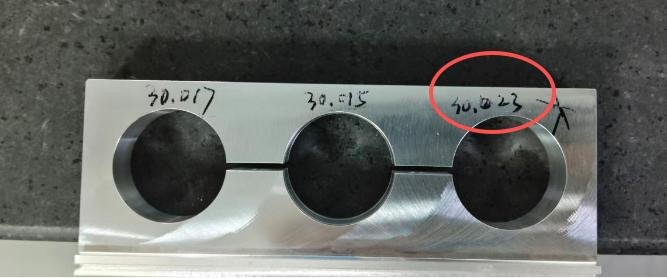

Multi-point scanning produced the following measurements:
· 30.0176 mm
· 30.0155 mm
· 30.0181 mm
· 30.0230 mm
![]()
Most measured locations remained within tolerance, with only a minor localized deviation detected.
From a conventional dimensional inspection perspective, the components appeared acceptable.
Pin Gauge Results

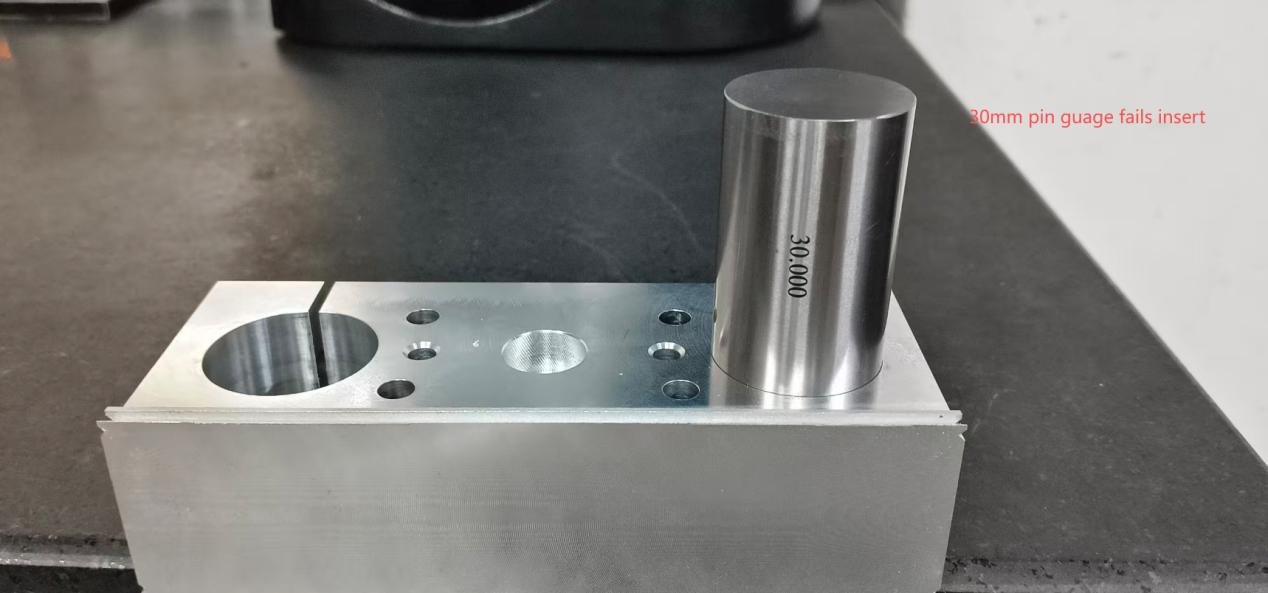

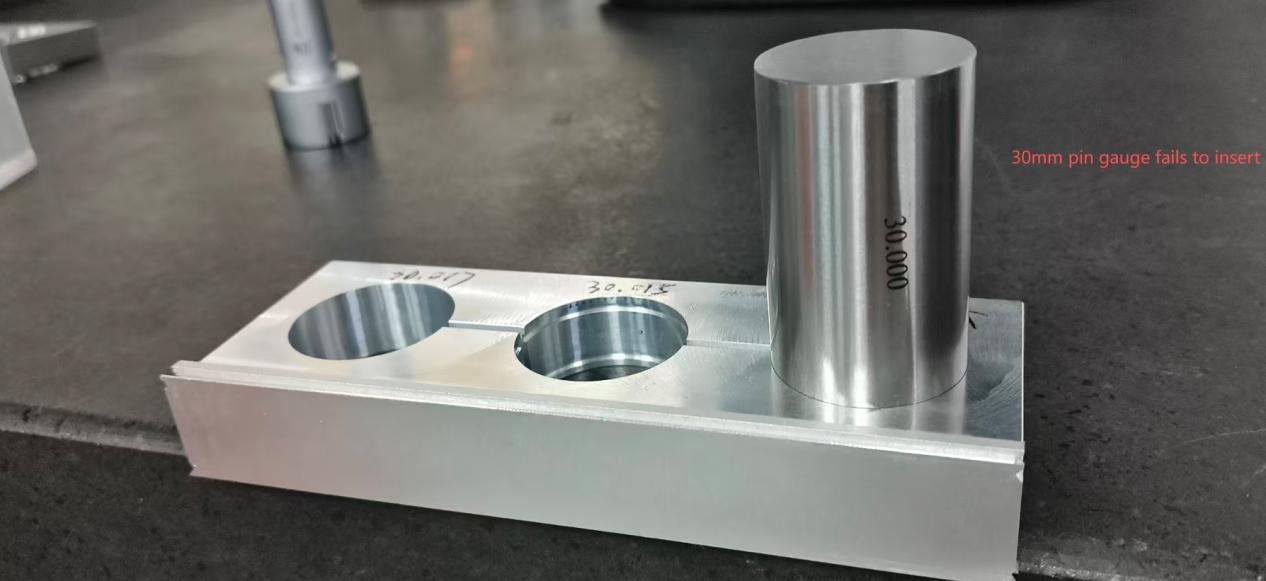

When a 30.00 mm Go Pin Gauge was inserted through the entire 136 mm deep hole, the gauge could not pass smoothly through the component.
Jamming occurred during penetration, indicating that the effective passage clearance of the hole was insufficient for actual assembly requirements.
This immediately revealed a critical issue that neither the inside micrometer nor the CMM measurements fully reflected.
![]()
Root Cause Analysis
The problem was not the nominal hole diameter.
The problem was the accumulated geometric variation throughout the entire hole length.
Although individual measurement points met dimensional requirements, slight deviations in straightness and concentricity reduced the effective passage diameter of the hole.
For deep-hole machining applications, even micron-level deviations can create a situation where:
· Measured dimensions are acceptable.
· Actual assembly becomes impossible.
This explains why some parts pass dimensional inspection but fail during customer assembly.
In this project, the customer's assembly process required a 30 mm cylindrical shaft to pass completely through the 136 mm hole.
The Go Pin Gauge successfully simulated this real assembly condition, while dimensional measurement tools only evaluated isolated measurement points.
Why Go/No-Go Pin Gauges Were the Better Solution
After reviewing the test data, our engineering team identified three major advantages of using Go/No-Go Pin Gauges as the primary inspection method.
1. Real Assembly Simulation
The customer's mating component is a solid cylindrical shaft.
The Go Gauge physically replicates the actual assembly condition by verifying whether the shaft can pass through the entire hole length.
This provides a direct evaluation of assembly performance rather than relying solely on dimensional data.
2. Faster Inspection
Inspection efficiency is critical for high-volume production.
Using an inside micrometer typically requires:
· Instrument adjustment
· Alignment
· Measurement
· Data recording
The process can take more than 40 seconds per hole.
A Go/No-Go Pin Gauge requires only a simple pass/fail verification and can typically complete inspection in less than 3 seconds.
This significantly improves inspection efficiency and reduces quality control costs.
3. Better Process Control
Pin gauges evaluate the entire effective passage condition of the hole.
Unlike localized dimensional measurements, they help identify issues related to:
· Straightness
· Concentricity
· Effective clearance
· Assembly functionality
This provides a more comprehensive quality assessment for deep-hole components.
Solution Implemented
After reviewing the comparative testing results, the customer's engineering and quality teams approved a revised inspection standard.
The new quality control process included:
Primary Inspection
Custom Go/No-Go Pin Gauge
Secondary Inspection
Inside Micrometer
Verification Inspection
CMM Measurement
This inspection hierarchy ensured that dimensional accuracy and assembly performance were both properly controlled.
Results After Implementation
Following implementation of the revised quality control procedure, the project achieved the following results:
✓ Zero assembly failures
✓ Zero customer returns
✓ Improved assembly efficiency
✓ Reduced inspection disputes
✓ Faster incoming quality inspection
✓ Stable mass production quality
The customer subsequently adopted the same inspection methodology for additional deep-hole component programs.
Conclusion
For deep-hole precision machining applications, dimensional measurements alone may not be sufficient to guarantee assembly success.
When assembly performance is critical, inspection methods should closely replicate real operating conditions.
This project demonstrates how a properly designed Go/No-Go Pin Gauge can identify hidden assembly risks that conventional dimensional inspection may overlook.
By combining real-world assembly simulation with structured quality control procedures, manufacturers can improve product reliability, reduce quality costs, and prevent costly assembly failures before shipment.
About Our Precision Machining Services
We specialize in:
· 5-Axis CNC Machining
· Deep Hole Precision Machining
· Micron-Tolerance Components
· Custom Inspection Fixtures
· Go/No-Go Gauge Design & Manufacturing
· Precision Quality Control Solutions
Our facility is equipped with a constant-temperature metrology laboratory, CMM inspection systems, and custom gauge manufacturing capabilities, allowing us to provide reliable machining solutions for customers in:
· Industrial Automation
· Aerospace
· UAV Systems
· Medical Devices
· Optoelectronics
· Precision Equipment Manufacturing
If your project involves deep-hole machining, tight tolerances, or assembly-critical components, our engineering team can help develop a manufacturing and inspection solution tailored to your application.
