After receiving the production drawings of the bottom panel (Botom_20251005), our engineering team launched a pre-production DFM (Design for Manufacturability) review. We thoroughly assessed core processes including precision sheet metal bending, hole forming, tolerance control, flatness inspection and assembly clearance management, and identified three major manufacturability risks that would impair mass production yield, assembly accuracy and structural stability.
Rather than simply manufacturing parts per drawings, we strive to strike a perfect balance between clients’ functional requirements and mass production feasibility for precision sheet metal. This proactive approach effectively prevents part deformation, assembly failure, rework and material waste, delivering solid support for your product launch. Below is the full process of design communication and solution implementation.

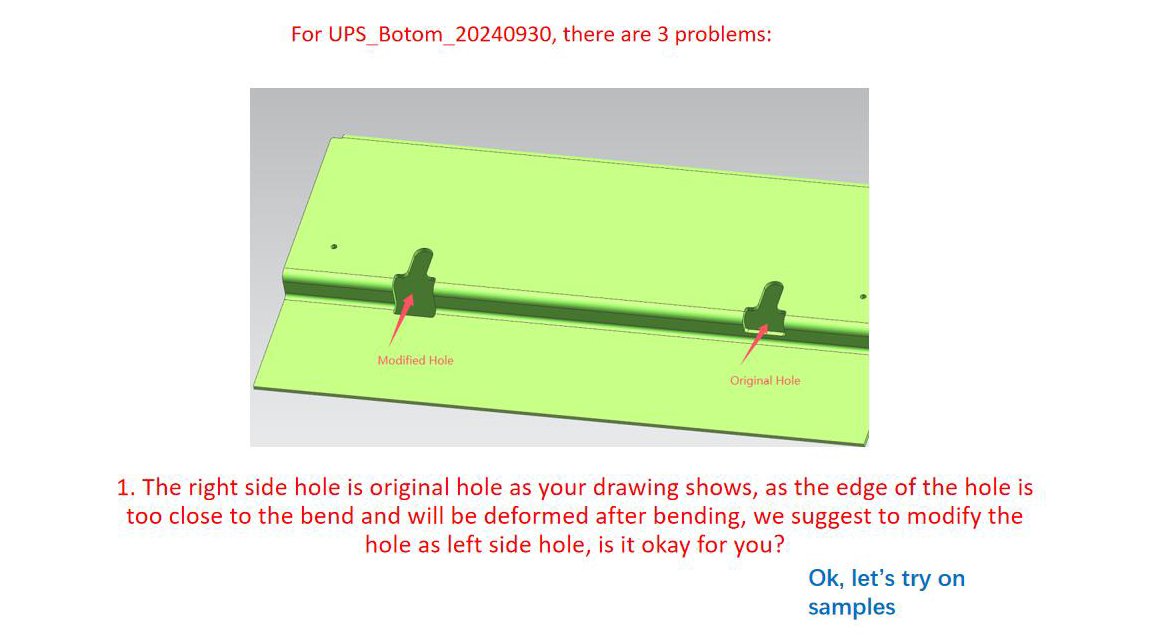

Issue 1: Hole Deformation Near Bend Lines | Sheet Metal Bending Process Optimization
Problem Analysis
The original hole was placed too close to the bend line. During precision sheet metal bending, plastic tension occurs in bending areas, which will stretch and displace the holes. This will compromise the geometric and dimensional tolerances of positioning holes and mounting holes, and further affect screw assembly and structural fitting.
Our Optimization Suggestion
We proposed adjusting the hole position to keep features away from high-stress bending zones. This avoids material tension damage and fully guarantees hole dimensional accuracy and geometric tolerances.
Client Feedback & Implementation
The client requested verification via sample production. We manufactured prototype parts with the revised design. After bending, we completed full dimension inspection with precision vernier calipers and custom hole gauges. All hole sizes and shapes complied with drawing tolerances without stretching or displacement. The client finally approved the solution.

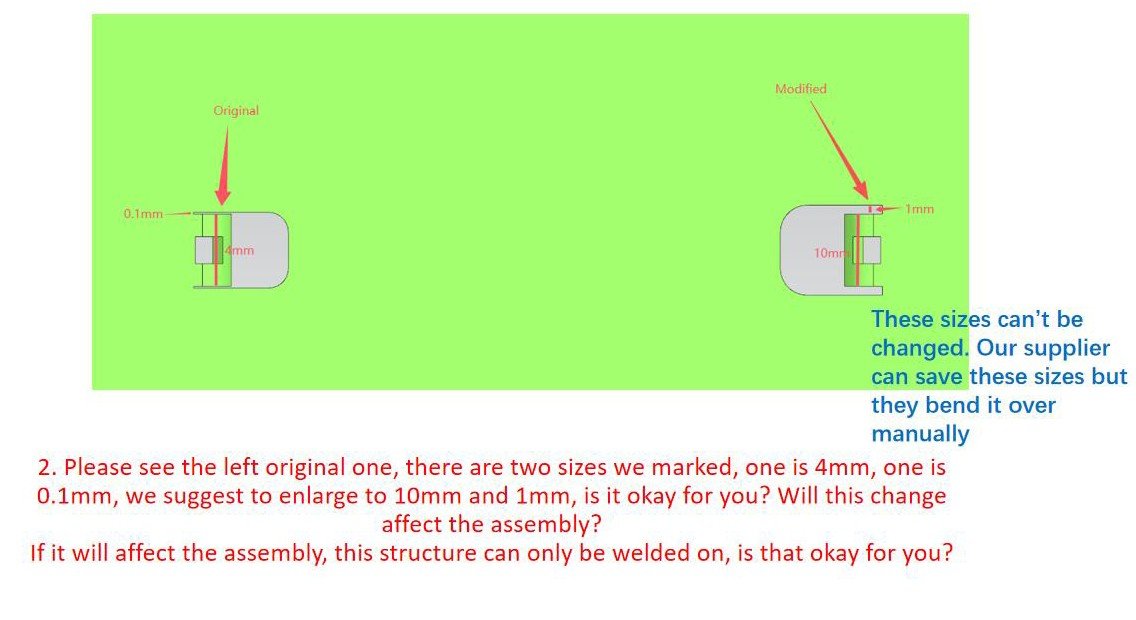

Issue 2: Conflict Between Critical Dimensions & Forming Process | Micro-tolerance Sheet Metal Forming Optimization
Problem Analysis
The original design adopted ultra-tight dimensions: 4mm depth and 0.1mm gap. Such specifications exceed the forming limit of standard automatic bending equipment. Manual forming is the only alternative, which leads to low productivity, poor batch consistency and frequent tolerance out-of-tolerance issues, failing to meet the standards of high-volume precision sheet metal production.
Our Optimization Suggestion
We offered two practical solutions to balance functionality and process performance:
1. Dimension Adjustment: Resize the feature to 10mm depth and 1mm gap to fit standard bending tools. Assembly simulation was conducted to ensure no negative impact on precision assembly clearance.
2. Welding Solution: If dimension modification was unavailable, we suggested fabricating independent precision stamping parts and assembling them onto the main panel via laser welding. This method secures high dimensional accuracy while eliminating forming risks.
Client Feedback & Implementation
The client confirmed these critical dimensions could not be changed due to mating part requirements. We adopted manual bending accordingly. Our skilled operators worked with custom precision bending toolings and used feeler gauges and height gauges for real-time dimension inspection, keeping all specifications within the required tolerance range.

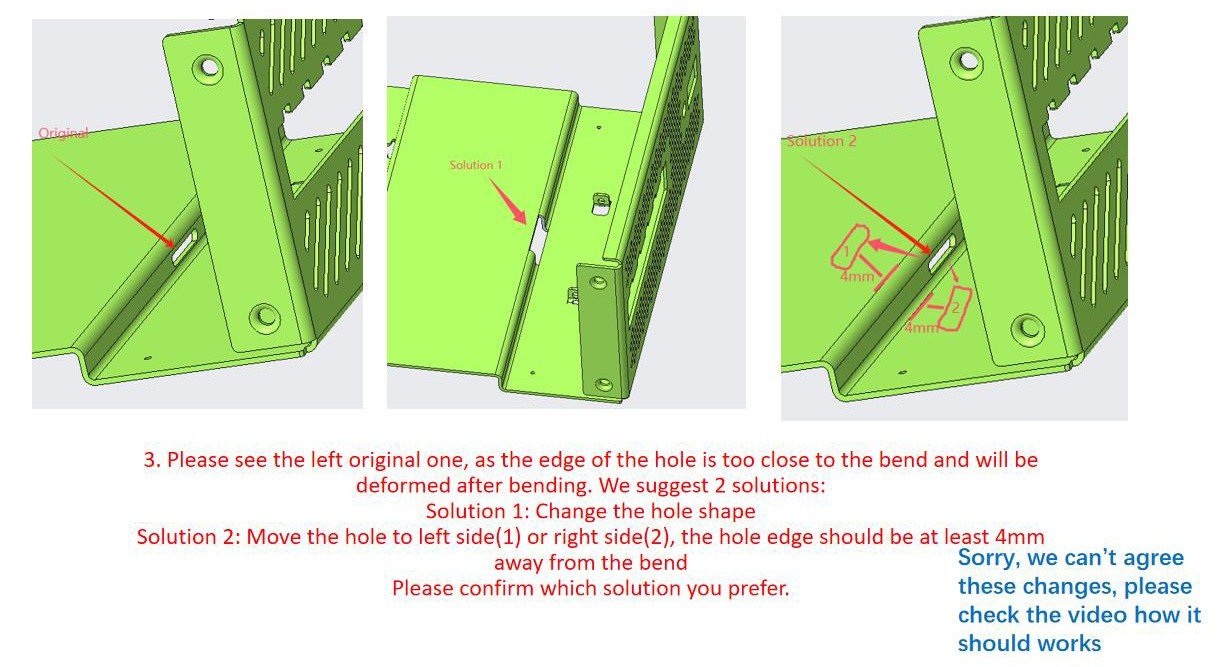

Issue 3: Deformation Risk of Mounting Holes | Sheet Metal Hole Forming Optimization
Problem Analysis
Similar to the first issue, the mounting hole was adjacent to the bend line. Tension and compression during bending would distort the holes, damage the dimensional accuracy of thread bottom holes and mounting holes, and undermine screw fastening and overall assembly stability.
Our Optimization Suggestion
Considering the client’s strict requirement for non-modifiable hole positions, we adopted a professional sheet metal stress relief process instead of traditional hole adjustment solutions. By adding a tiny relief slit near the mounting hole to release bending tension, we meet drawing specifications completely without altering the original design. The detailed solution is as follows:
Stress Relief Optimization Solution: A micron-level tiny relief slit is fabricated beside the hole close to the bend line. The slit will not change the hole center position, aperture size or overall appearance structure. It effectively releases tensile and compressive stress generated during the bending process, offsets the pulling force on the hole, and fundamentally avoids hole distortion and dimension deviation.
Client Feedback & Implementation
The client confirmed that the original hole position was critical for assembly positioning and could not be modified. To comply with the original design and functional requirements, we applied a custom bending process with tiny stress relief slits. The micro slit near the hole perfectly releases bending stress and eliminates hole deformation caused by material tension and compression. With calibrated bending parameters and professional sheet metal gauge sampling inspection, all finished parts maintain precise hole dimensional accuracy and geometric tolerances, fully meeting the client’s high-precision assembly standards without any design changes.
Key Takeaways | Our Strengths in Precision Sheet Metal Processing
This case demonstrates our comprehensive service capabilities in precision sheet metal fabrication:
1. Proactive DFM Risk Assessment: We identify potential problems such as bending deformation and tolerance deviation before mass production, cutting down extra costs caused by rework and delays.
2. Customer-oriented Custom Solutions: We provide diversified solutions based on clients’ actual functional needs, instead of rigidly following drawings or refusing production directly.
3. High-precision Process Control: With precision bending toolings, professional measuring tools and customized forming processes, we strictly control dimensional tolerance, hole accuracy and batch consistency.
4. Efficient & Transparent Communication: We support visual drawing confirmation, process explanation and sample inspection feedback to help clients reach quick and accurate decisions.
We are more than a sheet metal manufacturer — we deliver mass-producible, high-precision and stable engineering solutions for your products.
